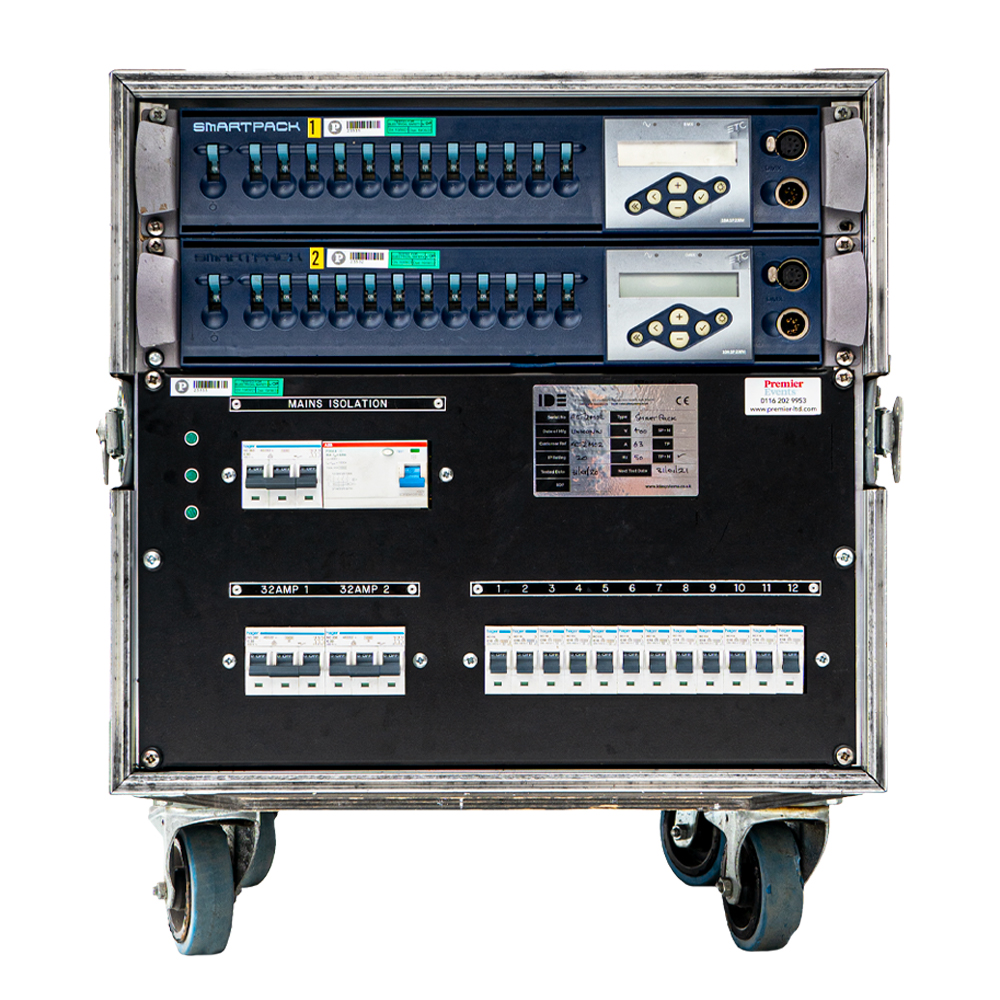

Combined dimmer and distro rack comprising of:
- 2 x ETC Smartpack 12 channel dimmer
- 1 x Rackmount TPNE Distro
Dimming
- 24 channels at 10A per channel
- Maximum load per dimmer is 32A per phase
- 5 pin DMX in and out

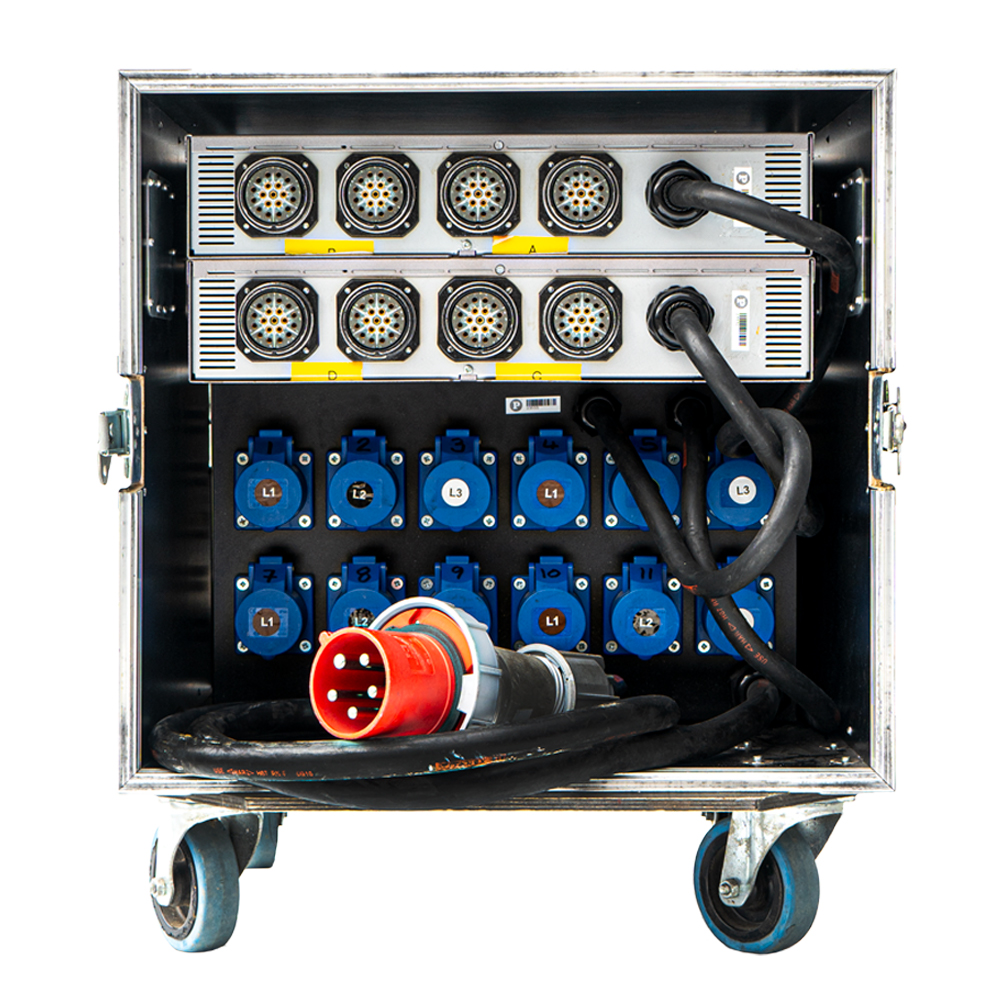

- 4 x Socapex per dimmer
Distro
- Incoming – 63A TPNE, protected by a 63A 3P Type C MCB and 4P 30mA RCD
- Outgoing
- 2 x 32A TPNE – hard wired to Smartpacks, each on a 3P Type C 32A MCB
- 12 x 16A SPNE CEEform – each on an SP Type C 16A MCB
- Incoming phase neons
