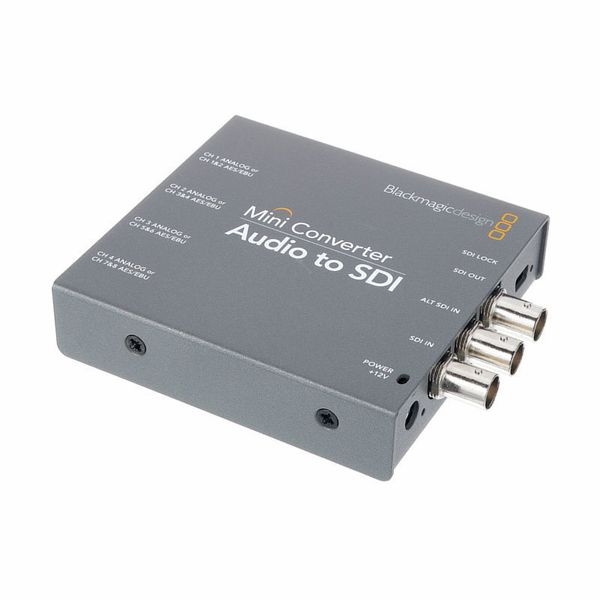

Blackmagic Design Mini Converter Audio to SDI



1 Day: £26 + VAT

2 Day: £39 + VAT

Week: £52 + VAT





115 x 92 x 23 mm

Blackmagic Design Mini Converter Audio to SDI Hire.

For embedding audio into any SDI source in SD and HD formats up to 1080p/60

Audio is embedded in the form of analogue or AES/EBU signals via ¼-inch connectors from devices such as mixers and analogue VTRs

  • SDI video inputs: 1x SD, HD or 3G SDI input.
  • 1x ALT-SDI input (which is automatically switched to if the main input fails)
  • 1x SDI video output for embedded SDI
  • Analogue audio inputs: 4 channels balanced analogue audio
  • Digital audio inputs: 8 channels of balanced AES/EBU audio
  • Multi-rate support: automatic detection of SD, HD and 3G SDI
  • Updates and configuration via high-speed USB 2.0 (480 Mbps)
  • Reclocking

Supplied in flightcase with power supply.
